This article provides an overview of the RAINPOINT ITV517P Multi-Program Digital Water Timer and covers the essential information for getting started.
If the model number on the device is ITV517P, this guide applies to this timer.

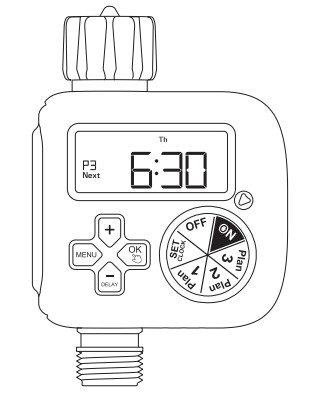

What Is the ITV517P
The ITV517P is a 1-zone multi-program digital water timer designed for automatic outdoor watering. It controls one watering line and supports up to three independent watering plans, allowing different start times, watering durations, and frequencies to be programmed for the same outlet.
The timer operates directly through its dial, LCD screen, and control buttons without requiring Wi-Fi, an app, or a gateway.
Key Capabilities
The ITV517P supports the following watering functions:
- Three independent watering programs: Plan 1 / Plan 2 / Plan 3
- Separate Start Time, How Long, and How Often settings for each plan
- Two watering frequency modes: Every Mode and Weekday Mode
- Every Mode for watering every 6, 8, or 12 hours, or every 1–7 days
- Weekday Mode for selecting specific watering days from Monday to Sunday
- Manual Watering without interrupting the programmed schedule
- Rain Delay for 0, 24, 48, or 72 hours
- ON/OFF control for running or disabling programmed watering
The three programs can be configured independently, allowing multiple watering schedules to run from the same timer.
Before You Start
Before installing the timer, please prepare:
- A compatible outdoor garden faucet
- A clean, cold-water supply
- A standard garden hose or watering system
- 2 new AAA alkaline batteries
Do not mix old and new batteries or use carbon-zinc or rechargeable batteries.
Before first use, make sure the inlet filter is installed correctly and the battery tray is securely reinstalled. The timer should also be activated before first use or after a period of inactivity to confirm that the internal valve opens and closes normally.
