This page serves as the support and reference center for the RAINPOINT ICS006 Water Flow Meter.
If the model number on your product is ICS006, you are in the correct place.
What is the ICS006?

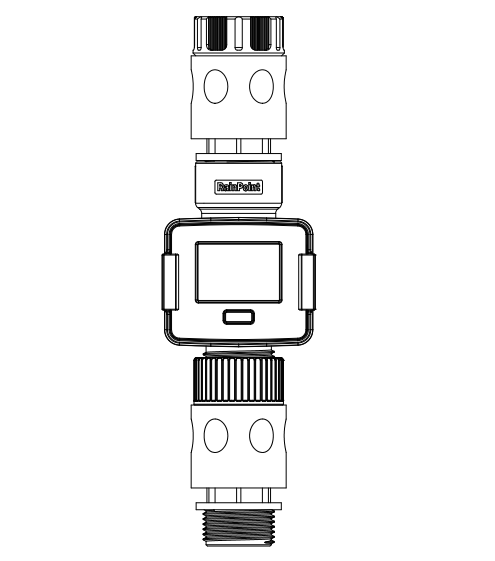

The RAINPOINT ICS006 is a digital water flow meter designed for standard residential garden watering applications.
Once installed in the water line, the meter can display water-use information directly on its LCD screen.
The ICS006 provides four measurement modes:
- FLOW MODE – Displays the real-time water flow.
- CONSUMPTION MODE – Measures water consumption for a single watering session.
- AVG MODE – Displays the average daily water consumption for the last 7 days.
- TOTAL MODE – Displays accumulated water consumption until manually reset.
The device also supports gallon/liter unit switching, data reset, low-battery indication, and energy-saving standby.
Key Capabilities Include
- Real-time water-flow measurement
- Single-session water-consumption measurement
- 7-day average water-consumption display
- Total accumulated water-consumption tracking
- GAL / L unit switching
- Individual data reset
- Automatic energy-saving standby
- Low-battery warning
- ±5% measurement tolerance
- 1–40 L/min flow range
- 0.5–8 bar working pressure
- IPX6 waterproof rating
- USA and EU faucet-thread compatibility
- Standard 3/4" faucet / hose / sprinkler compatibility
Before You Start
1. Install the CR2032 battery
The ICS006 uses: 1 × CR2032 battery
The battery is included.
To install the battery:
- Hold the handles on both sides of the display and pull the display outward.
- Remove the battery cover.
- Insert the CR2032 battery according to the polarity markings.
- Firmly reinstall the battery cover.
- Reinstall the display into the flow meter body.
2. Keep the pre-assembled configuration
The manual specifically recommends using the ICS006 in its:
Out-of-Box Pre-Assembled order
to reduce the risk of leakage.
The central components identified as fittings 2, 3, and 4 should remain assembled and should not be separated.
3. Select the correct regional connector
The ICS006 includes different outer fittings for USA and EU thread standards.
- USA: NH thread
- EU: BSP thread
Use the correct outer adapter for the faucet or downstream watering connection.
4. Install in the correct water-flow direction
Follow the water-flow direction shown on the product.
Correct flow direction is important for measurement accuracy.
5. Check all connections
Make sure:
- The correct fitting is used.
- The fitting order has not been changed.
- All connections are secure.
- There is no visible leakage.
6. Start with FLOW MODE
After water begins flowing, briefly press the button to cycle through the available measurement modes.
For first-time testing, use:
FLOW MODE
to confirm that real-time flow is displayed.
