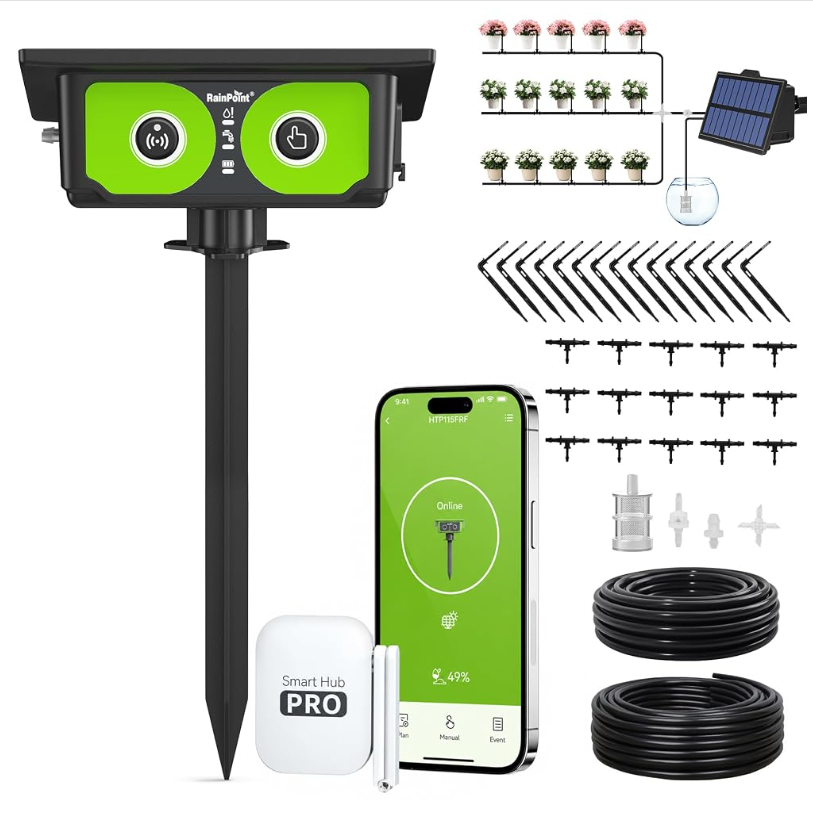

The current HTP160FRF documentation covers the RAINPOINT HTP160FRF Wi-Fi Outdoor Solar Automatic Drip Irrigation Pump used with the HWG023WBRF Gateway.
If the model numbers and control layout on your products match the information below, this is the correct support section.
HTP160FRF Version Overview
| Identification Item | HTP160FRF Smart Version |
|---|---|
| Pump Model | HTP160FRF |
| Gateway Model | HWG023WBRF |
| Product Type | Wi-Fi Outdoor Solar Automatic Drip Irrigation Pump |
| Smart Control | RainPoint Home app |
| Pump Controls | Wi-Fi Setup Button + Manual Watering Button |
| Pump Indicators | Watering, Battery, Low Water, Wi-Fi |
| Gateway Connection | 2.4 GHz Wi-Fi |
| Pump–Gateway Communication | 433 MHz RF |
| Pump Charging | Solar + USB-C |
| Water Ports | IN / OUT |
How to Identify Your Version
Look for the model information on the pump or product label.
The model should read: HTP160FRF
Does the Version Affect Usage?
The current user manual does not identify multiple HTP160FRF hardware versions with different operating instructions.
If your pump is labeled HTP160FRF and is used with the HWG023WBRF Gateway, follow the instructions in this support section.
If the pump or Gateway has a different model number, use the support information for that specific model.
Installation Note
The HTP160FRF can be installed using:
- Ground stake
- Wall-mounting bracket
- Detachable back hook
These are installation options and do not represent different product versions.
Regardless of the mounting method:
- Keep the pump at or above the reservoir water level.
- Keep the height difference within 6.6 ft (2 m).
- Position the solar panel for direct sunlight.
- Keep the pump within the recommended communication range of the Gateway.
