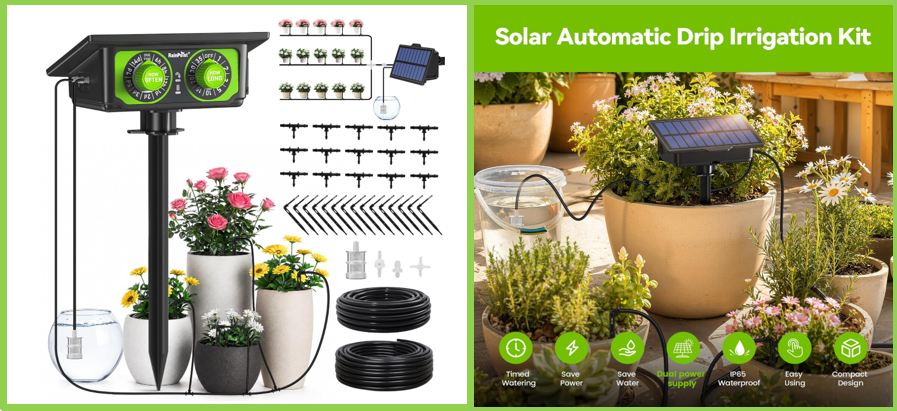

This article outlines the technical specifications and compatibility details of the RAINPOINT IK160 Outdoor Solar Automatic Drip Irrigation Pump Kit to help determine whether it fits your watering setup.
If your product label shows IK160, you are viewing the correct specifications page.
Product Specifications
| Parameter | Value |
|---|---|
| Working Temperature | 37°F–122°F (3°C–50°C) |
| Solar Panel Output | 5V / 1.5W |
| Charging Input | USB-C, 5V / 1A |
| Battery Capacity | 2000 mAh |
| Flow Rate | 30 L/h |
| Max Head | 3 m |
| Recommended Max Height Difference | ≤ 6.6 ft (2 m) |
| Waterproof Rating | IPX5 |
| Water Type | Clean, cold water only |
| Watering Frequency | ONE TIME, 6h, 8h, 12h, 1d, 2d, 3d, 5d, 7d, or 14d |
| Watering Duration | 1, 2, 3, 5, 10, 15, 20, 30, or 35 minutes |
| Main Line Tubing | 49.2 ft (15 m), 1/6" (4 mm) inner diameter |
| Branch Line Tubing | 16.4 ft (5 m), 1/8" (3 mm) inner diameter |
| Water Source | Water container / reservoir |
| Pump Placement | At or above the reservoir water level |
| Installation Options | Ground stake, wall mount, or back hook |
| Intended Application | Outdoor automatic drip irrigation for plants |
