The current IK160 documentation covers the RAINPOINT IK160 Outdoor Solar Automatic Drip Irrigation Pump Kit.

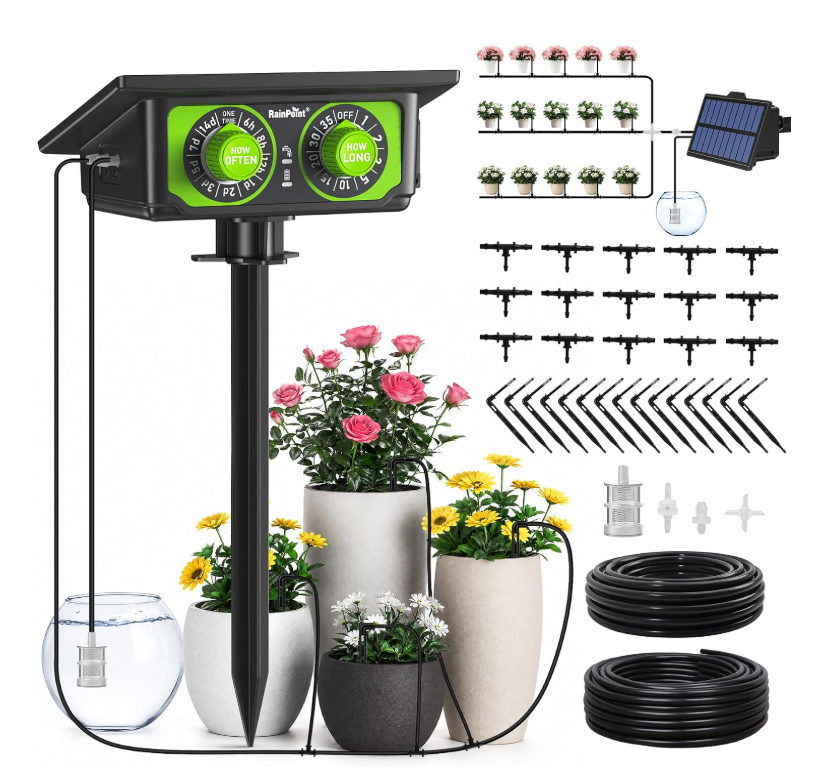

If the model number on your product is IK160 and the device matches the control and port layout shown below, this is the correct support page.
IK160 Configuration Overview
| Identification Item | IK160 |
|---|---|
| Model Number | IK160 |
| Product Type | Outdoor Solar Automatic Drip Irrigation Pump Kit |
| Main Controls | HOW OFTEN + HOW LONG knobs |
| Main Power Source | Integrated solar panel |
| Backup Charging | USB-C, 5V / 1A |
| Water Connections | IN and OUT ports |
| Main Tubing | 1/6" (4 mm) inner diameter |
| Branch Tubing | 1/8" (3 mm) inner diameter |
| Installation Options | Ground stake / Wall mount / Back hook |
How to Identify Your IK160
Look for the product model information on the device or product documentation.
The model should read: IK160
Does the Version Affect Usage?
The current IK160 user manual does not identify separate IK160 versions with different operating instructions.
If your product is labeled IK160 and matches the control and connection layout shown above, follow the IK160 instructions in this support section.
If your product has a different model number, different controls, or a different connection layout, use the support page for that specific model instead.
Installation Note
The different mounting accessories supplied with the IK160 are installation options, not different product versions.
Depending on the installation location, the IK160 can be:
- installed in the ground using the ground stake;
- secured to a wall using the mounting bracket;
- hung securely using the detachable back hook.
Regardless of the mounting method, keep the pump at or above the reservoir water level and ensure the installation is stable.
