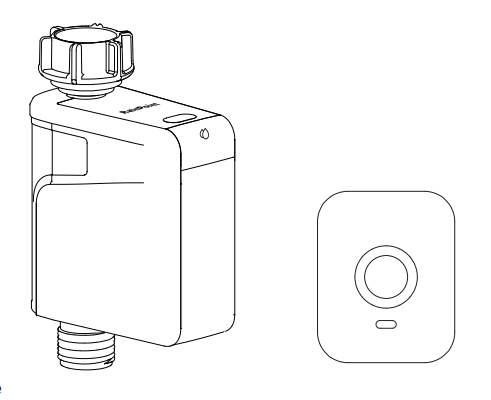

This article provides an overview of the RAINPOINT HTV107B 1-Zone Water Timer with HWG009BW Wi-Fi Gateway, including its main features and basic information before setup. If the model numbers are HTV107B + HWG009BW, this is the correct guide for this system.
What Is the HTV107B
The HTV107B is a 1-zone smart water timer designed for automatic outdoor watering. When paired with the HWG009BW Wi-Fi Gateway, watering schedules and other timer functions can be managed through the RainPoint Home App.
What Is the HWG009BW Wi-Fi Gateway
The HWG009BW connects the watering system to a 2.4 GHz Wi-Fi network and allows the HTV107B to be added to the RainPoint Smart+ App through the Gateway. During setup, the Gateway is connected first, followed by the HTV107B as the connected water timer.
Key Capabilities
- Remote watering management through the RainPoint Home App
- Up to 6 individual watering plans
- Irrigation Mode for regular watering
- Interval Mode for intermittent watering or misting
- Manual watering from 1 minute to 12 hours
- Plan Bypass for 24, 48, or 72 hours
- Watering schedule and next plan time display in the App
- Local weather information available in the App
- Voice control with Google Assistant or Amazon Alexa
Before You Start
Before setup, prepare:
- HTV107B Water Timer
- HWG009BW Wi-Fi Gateway
- 4 new AA alkaline batteries
- 2.4 GHz Wi-Fi network
- Mobile device with the RainPoint Home App
- Compatible outdoor faucet
- Garden hose or watering system
The HTV107B requires 4 AA alkaline batteries. Do not mix old and new batteries, and make sure the batteries are installed with the correct polarity.
Connect the HWG009BW Wi-Fi Gateway in the RainPoint Home App first, then add the HTV107B Water Timer through the Gateway. The Gateway supports 2.4 GHz Wi-Fi for connection.
Before normal use, install the inlet filter correctly and test the timer valve to confirm that it opens and closes properly.
