RAINPOINT 1008 – Overview & Specifications

This article provides an overview of the RAINPOINT 1008 Hose Nozzle, including its 10 spray patterns, adjustable water flow, construction, connection size, and operating pressure.

If the model number on your product is 1008, you are viewing the correct support page.

What is the RAINPOINT 1008?

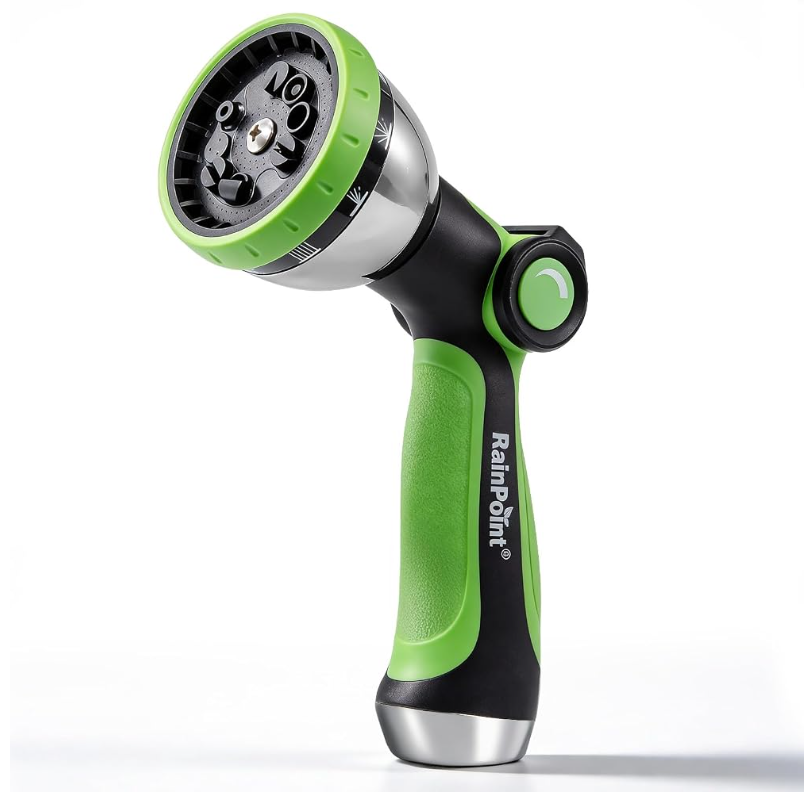

The RAINPOINT 1008 Hose Nozzle is a 10-pattern garden spray nozzle designed for general outdoor watering with clean water.

The rotating spray head provides multiple spray patterns for different watering needs, while the integrated flow control allows the water output to be adjusted from: OFF → Maximum

The nozzle connects to a compatible garden hose through a 3/4" threaded water inlet.

Key Features

• 10 selectable spray patterns
• Adjustable water flow from OFF to Maximum
• Lightweight plastic body
• TPR-covered grip/body
• ABS spray nozzle
• Aluminum alloy threaded interface
• Built-in rubber washer
• 3/4" threaded water inlet
• Maximum working pressure of 116 PSI / 8 bar
• Designed for general outdoor clean-water use

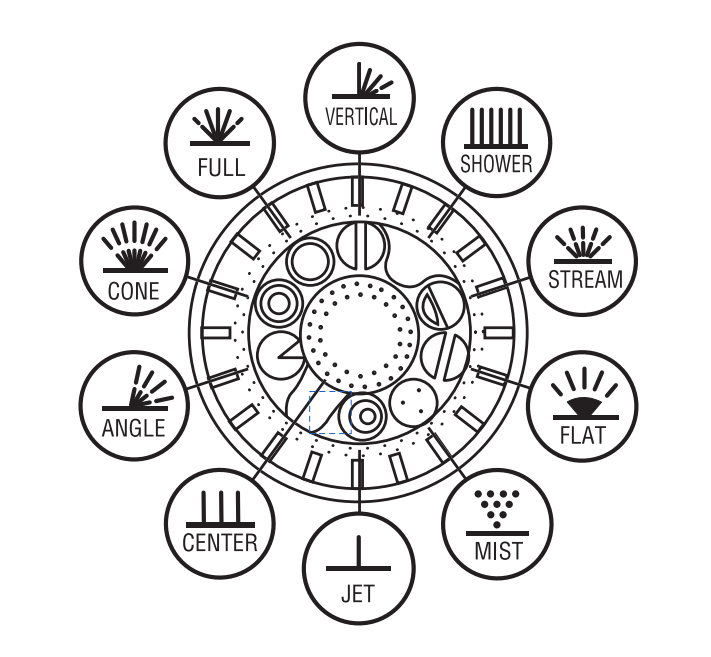

10 Spray Patterns

The 1008 provides the following spray modes:

1. FULL
2. VERTICAL
3. SHOWER
4. STREAM
5. FLAT
6. MIST
7. JET
8. CENTER
9. ANGLE
10. CONE

Rotate the spray head to select the desired spray pattern.

Product Specifications

Important Use Limitations

The 1008 is intended for general outdoor clean-water use.

Do not use it for:

• Commercial applications
• Hot-water applications
• High-pressure applications above 116 PSI
• Pesticides
• Car-wash foaming agents
• Other chemicals

The manual warns that improper use may cause personal injury, product damage, or property damage.
