This article introduces the RAINPOINT ITV220 2-Zone Digital Water Timer and provides the essential information for getting started. If the model number on the device is ITV220, this guide applies to this timer.
What Is the ITV220

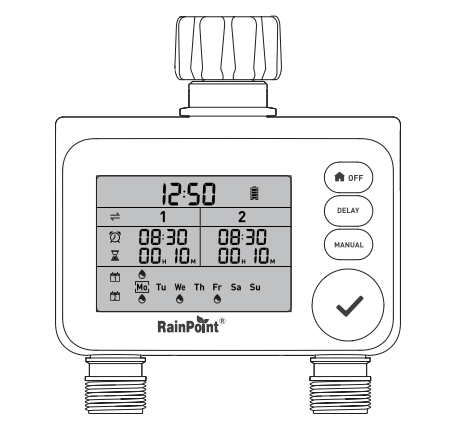

The ITV220 is a 2-zone digital water timer designed for automatic outdoor watering. It controls two watering lines from a single faucet, with separate watering settings available for Zone 1 and Zone 2.
Each zone can be programmed independently to accommodate different watering areas or scheduling needs.
Key Capabilities
The ITV220 supports the following watering functions:
- Independent watering control for Zone 1 and Zone 2
- Separate start time and watering duration for each zone
- Selectable watering days from Monday to Sunday for each zone
- Manual watering for one or both zones
- Rain Delay for 24, 48, or 72 hours
- Independent ON/OFF control for each zone
The timer also features a large LCD screen with an adjustable viewing angle of up to 45°.
Before You Start
Before installing the timer, please prepare:
- A compatible outdoor garden faucet
- A clean, cold-water supply
- One or two standard garden hoses or watering lines
- 2 new AA alkaline batteries
Do not mix old and new batteries or use carbon-zinc or rechargeable batteries.
Before first use, make sure the inlet filter is installed correctly and the battery compartment cover is fully sealed. Activate both timer valves before first use or after a period of inactivity to confirm that Zone 1 and Zone 2 open and close properly.
