This article provides an overview of the RAINPOINT DZ04 4-Way Hose Splitter, including its connection standards, operating conditions, materials, and intended applications.
If the model number on your product is DZ04, you are viewing the correct support page.
What is the RAINPOINT DZ04?

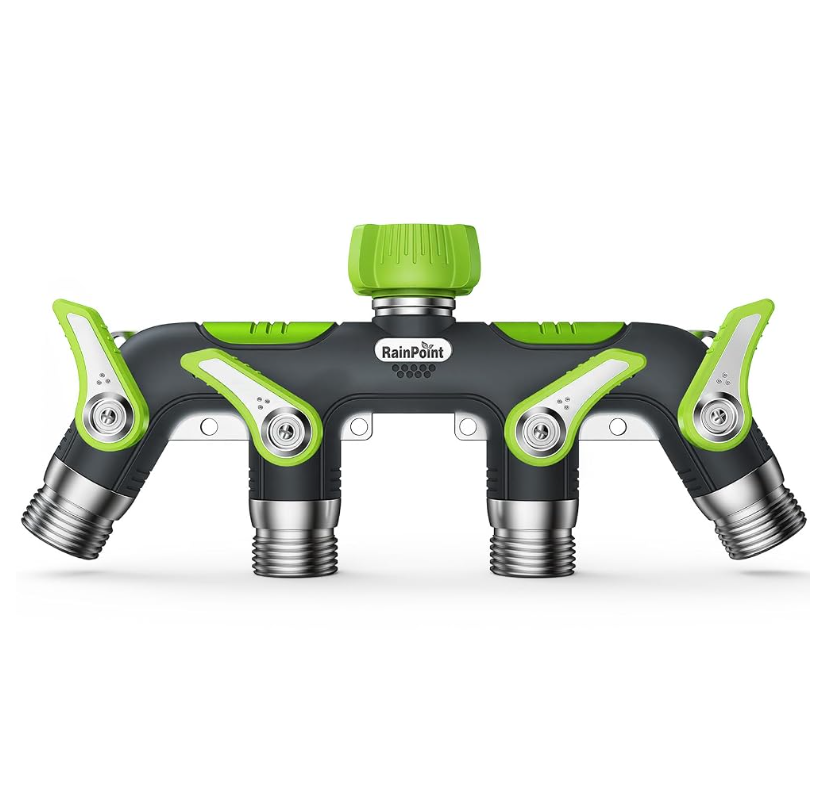

The RAINPOINT DZ04 4-Way Hose Splitter is designed to distribute water from a single faucet to up to four garden hoses or watering outlets.
Each outlet includes its own Valve Switch, allowing the four water lines to be controlled independently without disconnecting the hoses.
The DZ04 is suitable for:
- Garden watering
- Lawn watering
- Multiple garden-hose connections
- Multiple irrigation zones
- Other outdoor watering applications requiring several independent water outlets
Key Features
- Converts one faucet into four water outlets
- Four independently controlled outlets
- Individual Valve Switch for each outlet
- US and EU faucet-thread configurations
- Compatible with standard 3/4" garden hoses
- Brass inlet
- Metal body and outlets
- ABS inlet cover
- TPR body coverage
- Hand-installation design
Product Specifications
| Parameter | Value |
|---|---|
| Model | DZ04 |
| Product Type | 4-Way Hose Splitter |
| US Water Inlet | NH thread for 3/4" faucets |
| EU Water Inlet | BSP thread for 3/4" faucets |
| Water Outlets | For standard 3/4" garden hoses |
| Number of Outlets | 4 |
| Working Water Pressure | 0–20 bar (0–300 PSI) |
| Working Temperature | 41°F–140°F (5°C–60°C) |
| Inlet Cover Material | ABS |
| Inlet Material | Brass |
| Body / Outlet Material | Metal |
| Outer Coverage | TPR |
| Outlet Control | Independent Valve Switches |
Product Dimensions
The product drawing shows approximate dimensions of:
- Overall width: 241.3 mm
- Overall height: 105.4 mm
- Inlet cover width: 51.4 mm
Connection Compatibility
US Configuration
Designed for: 3/4" NH faucets
EU Configuration
Designed for: 3/4" BSP faucets
Water Outlets
All four outlets are designed for: Standard 3/4" garden hoses
Make sure the faucet thread matches the product configuration before installation.
How the Four Outlets Work
Each outlet has its own Valve Switch.
This means each watering line can be controlled independently.
For example, users can:
- Use only one outlet
- Use any combination of two or three outlets
- Use all four outlets simultaneously
- Keep unused outlets closed
- Turn one watering line off without affecting the others
Each Valve Switch controls only its corresponding outlet.
Warranty
The DZ04 manual states that RAINPOINT provides a 12-month limited warranty to the original purchaser/user against defects in materials or workmanship, subject to the warranty conditions described in the manual.
