This article provides an overview of the RAINPOINT HTKJ1001 and HTKJ1002 Solid Brass Quick Connects, including their construction, included components, model differences, and compatible applications.
If your product is labeled HTKJ1001 or HTKJ1002, you are viewing the correct support page.
What are the HTKJ1001 and HTKJ1002?
The RAINPOINT HTKJ1001 and HTKJ1002 Solid Brass Quick Connects are designed to make connecting and disconnecting compatible garden watering equipment faster and easier.
Instead of repeatedly threading and unthreading a hose connection, the quick-connect system requires an initial threaded installation and then allows subsequent connections through a simple push-fit connection.
This can help:
- Reduce repeated threading
- Reduce wear on threaded connections
- Make hose and watering-tool changes faster
- Simplify repeated connection and disconnection
Both models are constructed from solid brass for corrosion resistance and long-term outdoor use.
Key Features
- Solid brass construction
- Corrosion-resistant design
- Quick push-fit connection
- Easy repeated connection and removal
- Helps reduce repeated thread wear
- Leak-proof O-ring included
- Sealing washer included
- Suitable for a range of garden watering equipment
- Low-pressure use up to 300 PSI, as specified in the manual
HTKJ1001 / HTKJ1002 Model Comparison
| Item | HTKJ1001 | HTKJ1002 |
|---|---|---|
| Product Type | Solid Brass Quick Connect | Solid Brass Quick Connect |
| Quick-Connect Body | Approx. Ø30 × 41.3 mm | Approx. Ø30 × 41.3 mm |
| Matching Connector | Approx. Ø30 × 33.5 mm | Approx. Ø26.2 × 33 mm |
| Material | Brass | Brass |
| Connection Method | Push-fit | Push-fit |
| Leak-Proof O-Ring | Included | Included |
| Sealing Washer | Included | Included |
| Maximum Pressure Stated in Warning | ≤300 PSI | ≤300 PSI |
The two models use the same basic quick-connect operating principle. The main visible difference shown in the manuals is the size and shape of the matching connector.

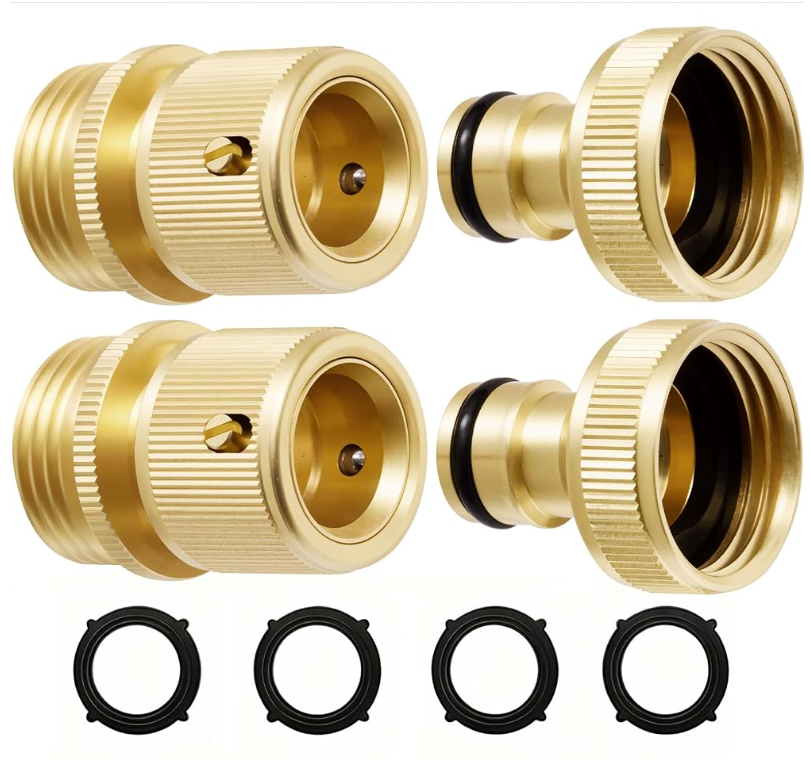

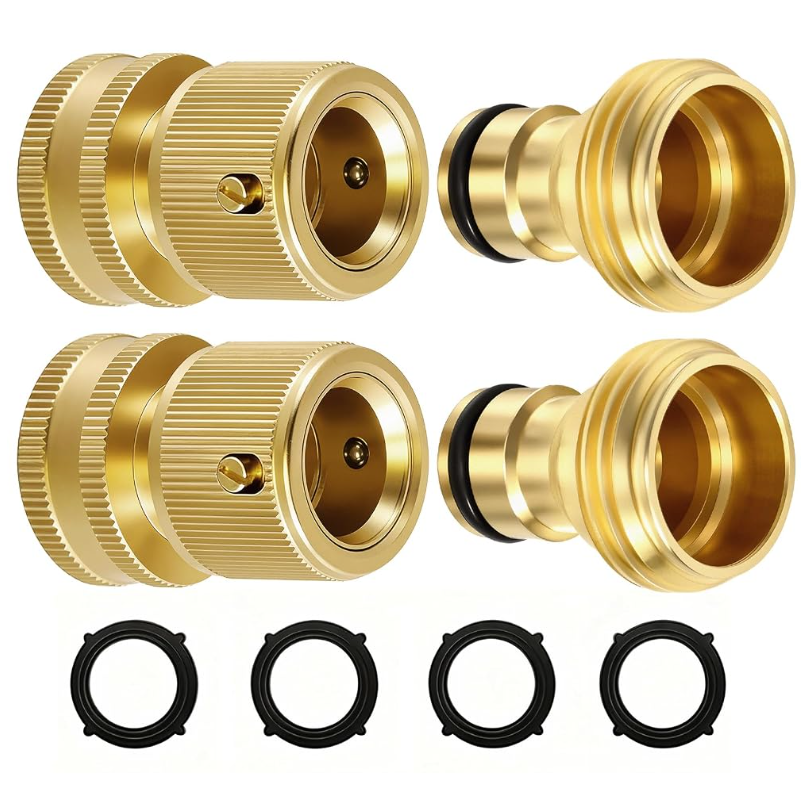

Included Components
Both manuals list:
- Brass male quick-connect
- Brass female quick-connect
- Leak-proof O-ring
- Sealing washer
Compatible Applications
The manuals state that the quick-connect fittings are suitable for a range of irrigation and garden-watering equipment, including:
- Garden hoses
- Faucets
- Spray guns
- Other compatible irrigation devices
Because the manuals do not provide a specific NH / BSP / GHT thread specification, I recommend not adding a specific thread standard to the Zendesk article unless another approved product specification confirms it.
Important Use Limit
The manuals specify: Low-pressure use only (≤300 PSI).
Using pressure above the stated limit may cause leakage or product damage.
