This article explains how to connect and use the RAINPOINT HTKJ1001 and HTKJ1002 Solid Brass Quick Connects and covers the main installation and safety guidance provided in the user manuals.
Installation & Use
Both HTKJ1001 and HTKJ1002 use the same connection method.

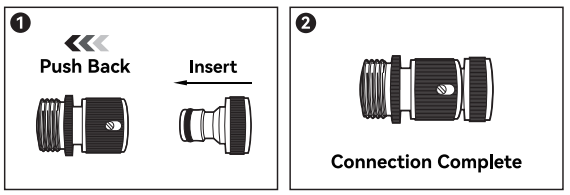

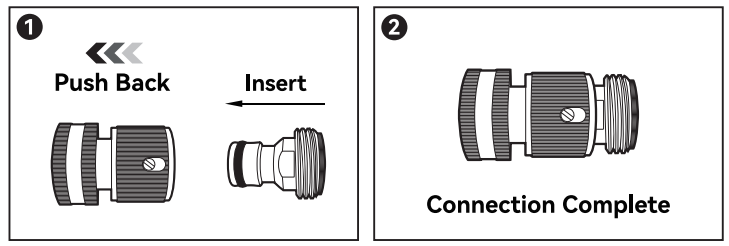

Step 1: Pull Back the Quick-Connect Sleeve
Hold the female quick-connect fitting and pull back the outer sleeve.
Step 2: Insert the Matching Connector
Insert the matching male quick-connect fitting into the female connector.
Keep the two parts aligned during insertion.
Step 3: Release the Sleeve
Release the quick-connect sleeve.
Make sure the two components are fully engaged.
The connection is complete when the fittings are securely locked together.
Threaded Installation
Where a threaded side is connected to a hose, faucet, or watering accessory:
- Align the threads correctly.
- Tighten by hand.
- Do not use excessive force.
- Do not use tools for overtightening.
The quick-connect design is intended to require only the initial threaded installation; later connection and disconnection can then be completed using the push-fit mechanism.
Disconnecting the Quick Connect
To disconnect:
- Turn off the water supply.
- Release any remaining water pressure.
- Pull back the sleeve on the female quick connector.
- Pull the matching connector straight out.
- Release the sleeve.
Avoid pulling the fittings apart while the system remains pressurized.
Common Questions
What is the difference between HTKJ1001 and HTKJ1002?
Both are solid-brass quick-connect systems and use the same push-fit connection method.
The main difference shown in the manuals is the physical size and shape of the matching connector.
HTKJ1001 shows a matching connector of approximately: Ø30 × 33.5 mm
HTKJ1002 shows a smaller matching connector of approximately: Ø26.2 × 33 mm
The main quick-connect body is approximately Ø30 × 41.3 mm on both models.
Are HTKJ1001 and HTKJ1002 made of brass?
Yes.
Both manuals describe the products as: Solid Brass Quick Connect
and state that the construction is designed to resist corrosion and aging.
How do I connect the two fittings?
Pull back the quick-connect sleeve, insert the matching connector, and release the sleeve to lock the connection.
Do I need to screw the connection together every time?
No.
The manual describes a Quick-Connect Design that requires the threaded connection to be tightened initially, while subsequent connections can use the push-fit mechanism.
Are sealing parts included?
Yes.
Both models include:
- Leak-proof O-ring
- Sealing washer
What should I check if the connection leaks?
Check that:
- The two quick-connect parts are fully engaged.
- The O-ring is present and correctly seated.
- The sealing washer is correctly installed.
- Any threaded connection is properly aligned and hand-tightened.
The manuals do not provide a separate formal Troubleshooting section, so these checks are based directly on the included sealing components and installation design rather than an additional manufacturer fault diagnosis.
Can I use tools to tighten the fittings?
The manual states: Hand-tighten only.
Do not use tools to overtighten the fittings, as this may cause damage.
What is the maximum pressure?
The warning section states: For low-pressure use only (≤300 PSI).
Using higher pressure may cause leakage or damage.
Can I use the quick connects with garden hoses and spray guns?
Yes.
The manuals state that the fittings are compatible with a wide range of irrigation equipment, including:
- Hoses
- Faucets
- Spray guns
Actual connection compatibility should still be checked against the specific equipment being used.
Safety & Care
Hand-Tighten Only
Do not overtighten threaded connections with tools.
Wear Protective Gloves if Needed
The manuals warn that metal edges may be sharp during handling and installation.
Do Not Disassemble
Do not disassemble the quick-connect components.
Improper handling may prevent the product from functioning correctly.
Check the O-Ring and Washer
If the fitting has been disconnected repeatedly, check that the sealing components remain:
- Present
- Properly seated
- Undamaged
Stay Within the Pressure Limit
Use only within the pressure limit stated in the manual: ≤300 PSI
