This article provides an overview of the RAINPOINT DZ-PRO 2-Way Hose Splitter, including its connection standards, operating conditions, materials, and intended applications.
If the model number on your product is DZ-PRO, you are viewing the correct support page.
What is the RAINPOINT DZ-PRO?

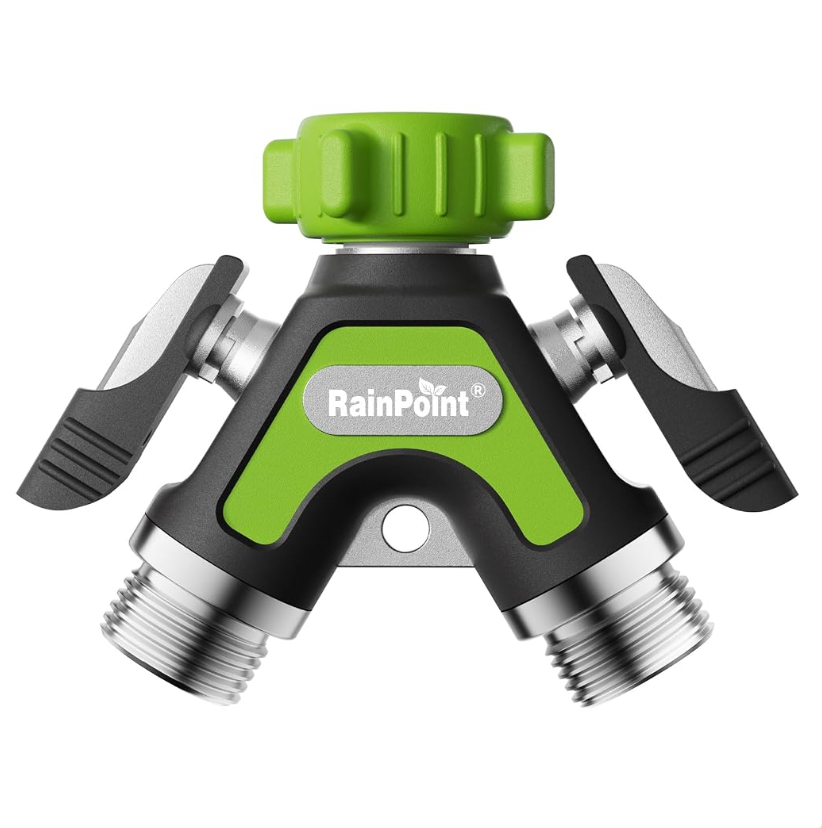

The RAINPOINT DZ-PRO 2-Way Hose Splitter is designed to distribute water from a single faucet to two garden hoses or watering outlets.
Each outlet includes an independent Valve Switch, allowing the two water lines to be controlled separately without disconnecting the hoses.
The DZ-PRO is suitable for applications such as:
- Garden watering
- Lawn watering
- Two-hose watering setups
- Multiple irrigation lines
- Other outdoor watering applications requiring two independent outlets
Key Features
- Converts one faucet into two water outlets
- Two independently controlled outlets
- Large wing-style Valve Switches
- Individual ON/OFF water control for each outlet
- US and EU faucet-thread configurations
- Compatible with standard 3/4" garden hoses
- Brass inlet
- Zinc-alloy body and outlets
- ABS inlet cover
- TPR body coverage
- Hand-installation design
Product Specifications
| Parameter | Value |
|---|---|
| Model | DZ-PRO |
| Product Type | 2-Way Hose Splitter |
| US Water Inlet | NH thread for 3/4" faucets |
| EU Water Inlet | BSP thread for 3/4" faucets |
| Water Outlets | For standard 3/4" garden hoses |
| Number of Outlets | 2 |
| Working Water Pressure | 0–20 bar (0–300 PSI) |
| Working Temperature | 41°F–140°F (5°C–60°C) |
| Inlet Cover Material | ABS |
| Inlet Material | Brass |
| Body / Outlet Material | Zinc alloy |
| Outer Coverage | TPR |
| Outlet Control | Independent Valve Switches |
Product Dimensions
The product drawing shows approximate dimensions of:
- Overall width: 128 mm
- Overall height: 97 mm
- Inlet cover width: 51.5 mm
Connection Compatibility
US Configuration
Designed for: 3/4" NH faucets
EU Configuration
Designed for: 3/4" BSP faucets
Water Outlets
Both outlets are designed for: Standard 3/4" garden hoses
Confirm the faucet thread standard before installation.
How the Two Outlets Work
Each outlet has its own Valve Switch.
This allows the user to:
- Use only the left outlet
- Use only the right outlet
- Use both outlets simultaneously
- Close either outlet without removing the connected hose
Each switch controls only the water flow on its corresponding side.
Warranty
The DZ-PRO manual states that RAINPOINT provides a 12-month limited warranty to the original purchaser/user against defects in materials or workmanship, subject to the warranty conditions described in the manual.
