This article provides an overview of the RAINPOINT DZ03 3-Way Hose Splitter, including its connection standards, operating conditions, materials, and intended applications.
If the model number on your product is DZ03, you are viewing the correct support page.
What is the RAINPOINT DZ03?

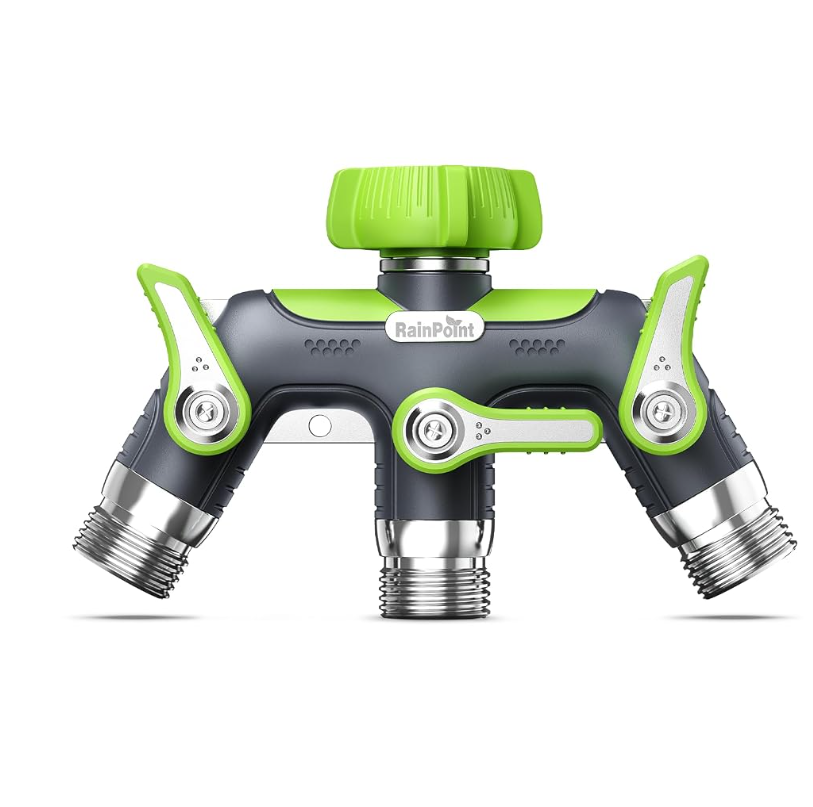

The RAINPOINT DZ03 3-Way Hose Splitter is designed to distribute water from a single faucet to three garden hoses or watering outlets.
Each outlet has its own Valve Switch, allowing the three watering lines to be controlled independently.
The DZ03 is suitable for:
- Garden watering
- Lawn watering
- Multiple hose connections
- Multiple irrigation lines
- Other outdoor watering applications requiring three separate water outlets
Key Features
- Converts one water source into three outlets
- Three independently controlled water outlets
- Individual Valve Switch for each outlet
- US and EU faucet-thread configurations
- Compatible with standard 3/4" garden hoses
- Brass inlet
- Zinc-alloy body and outlets
- ABS inlet cover
- TPR body coverage
- Suitable for garden, lawn, and irrigation applications
Product Specifications
| Parameter | Value |
|---|---|
| Model | DZ03 |
| Product Type | 3-Way Hose Splitter |
| US Water Inlet | NH thread for 3/4" faucets |
| EU Water Inlet | BSP thread for 3/4" faucets |
| Water Outlets | For standard 3/4" garden hoses |
| Number of Outlets | 3 |
| Working Water Pressure | 0–20 bar (0–300 PSI) |
| Working Temperature | 41°F–140°F (5°C–60°C) |
| Inlet Cover Material | ABS |
| Inlet Material | Brass |
| Body / Outlet Material | Zinc alloy |
| Outer Coverage | TPR |
| Outlet Control | Independent Valve Switches |
Product Dimensions
The product drawing shows approximate dimensions of:
- Overall width: 171.16 mm
- Overall height: 105.9 mm
- Inlet cover width: 51.4 mm
Connection Compatibility
US Configuration
Designed for: 3/4" NH faucets
EU Configuration
Designed for: 3/4" BSP faucets
Water Outlets
All three outlets are designed for: Standard 3/4" garden hoses
Make sure the faucet thread matches the regional configuration before installation.
How the Three Outlets Work
Each outlet has its own Valve Switch.
This allows the user to operate the three watering lines independently.
For example:
- Use only one outlet
- Use any two outlets
- Use all three outlets at the same time
- Close all three outlets
Each Valve Switch controls only the corresponding outlet.
Warranty
The DZ03 manual states that RAINPOINT provides a 5-year limited warranty to the original purchaser/user against defects in materials or workmanship, subject to the warranty conditions described in the manual.
