This article explains how to connect and operate the RAINPOINT 20026-2 9-Pattern Watering Wand.
Installation Instructions
Step 1: Check the Hose Connection
Before installation:
- Make sure the garden hose connector is clean.
- Check that the built-in rubber washer is correctly positioned.
- Confirm that the hose uses a compatible 3/4" connection.
Step 2: Connect the Watering Wand
Screw the garden hose onto the threaded inlet of the watering wand.
Tighten the connection securely by hand.
The manual describes this as a simple screw-on connection between the garden hose and watering wand.
Step 3: Check for Leakage
Turn on the faucet and inspect the connection between the garden hose and watering wand.
If the connection leaks:
- Turn off the water.
- Disconnect the hose.
- Check the existing rubber washer.
- Add an additional rubber washer if necessary.
- Reconnect the hose securely.
- Turn the water back on and check again.
The manual states that two rubber washers may be used together when additional sealing is required.

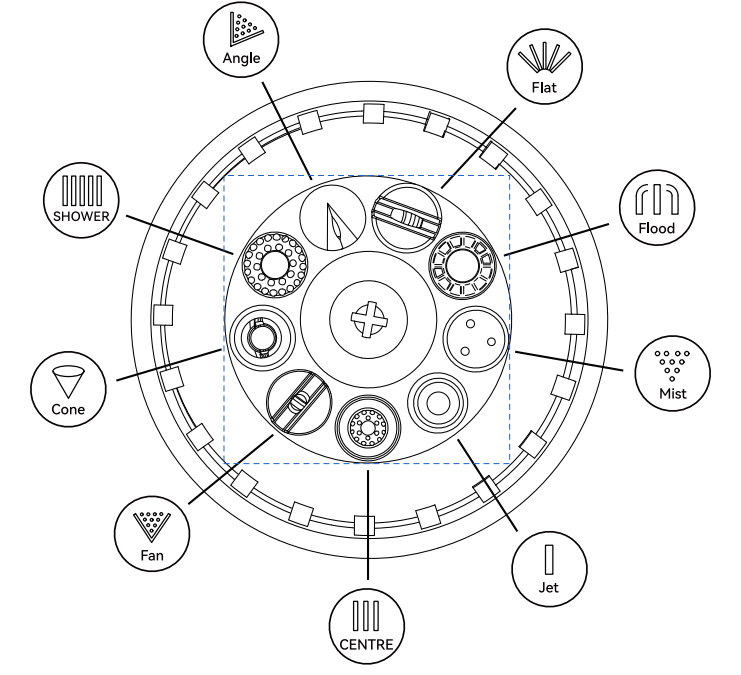

Step 4: Select a Spray Pattern
Rotate the spray head to choose one of the nine available modes:
- ANGLE
- FLAT
- FLOOD
- MIST
- JET
- CENTRE
- FAN
- CONE
- SHOWER
Rotate the spray head fully into the desired position.
Step 5: Use the ON/OFF Switch
The handle includes a water-control switch.
Move the switch to:
ON – Allow water to flow through the wand.
OFF – Stop the water flow at the wand.
The current manual shows the switch as an ON/OFF control and does not specify variable flow adjustment, so Zendesk should not describe it as a continuous flow-control dial.
Before Regular Use
Check that:
- The garden hose is securely connected.
- The rubber washer is installed.
- There is no visible leakage.
- The spray head is in the selected position.
- The ON/OFF switch operates normally.
- The wand is not visibly damaged.
- Water pressure does not exceed 80 PSI / 5.5 bar.
