This article provides an overview of the RAINPOINT MZ255-2 Heavy Duty Hose Nozzle, including its adjustable spray pattern, construction, hose connection, and operating pressure.
If the model number on your product is MZ255-2, you are viewing the correct support page.
What is the RAINPOINT MZ255-2?

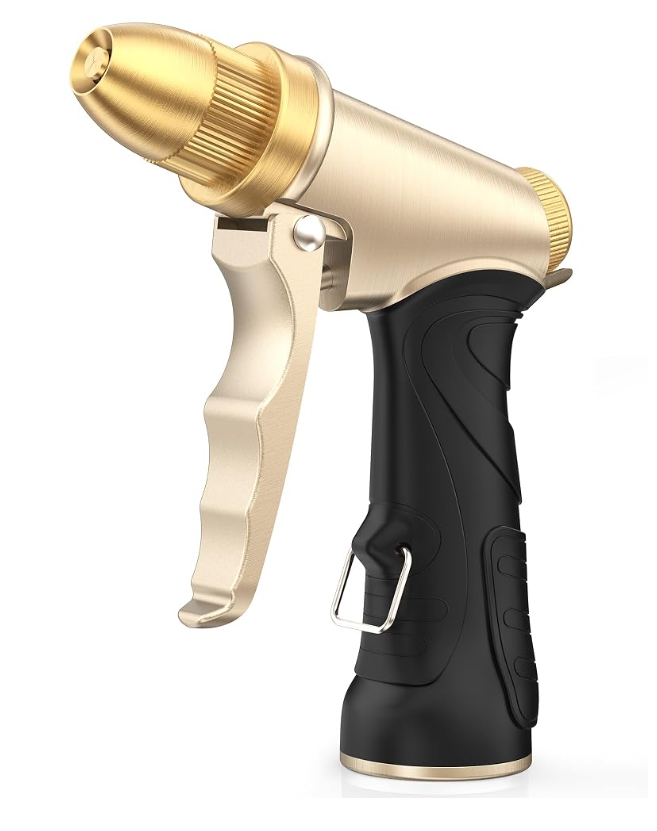

The RAINPOINT MZ255-2 is a heavy-duty adjustable garden hose nozzle designed for outdoor watering.
Unlike a multi-pattern nozzle with fixed spray settings, the MZ255-2 uses a rotating brass nozzle to adjust the spray pattern continuously.
The nozzle also includes a trigger and buckle, allowing the trigger to be secured during continuous watering.
Key Features
- 100% zinc alloy body
- Brass adjustable nozzle
- TPR-wrapped handle
- Trigger operation
- Trigger-lock buckle
- Built-in rubber washer
- 3/4" threaded water inlet
- Continuously adjustable spray pattern
- Standard working pressure of 60 PSI
- Maximum working pressure of 80 PSI
Main Components
Brass Nozzle
Rotate the brass nozzle to adjust the spray pattern.
The manual describes adjustment from: Fine Mist → Jet → Shower
rather than separate numbered spray modes.
Trigger
Press the trigger to start spraying.
Buckle
The buckle can secure the trigger for continuous spraying.
Built-in Rubber Washer
The built-in washer helps seal the connection between the nozzle and garden hose.
Product Specifications
| Parameter | Value |
|---|---|
| Model | MZ255-2 |
| Product Type | Heavy Duty Adjustable Hose Nozzle |
| Standard Working Pressure | 60 PSI (4.1 bar) |
| Maximum Working Pressure | 80 PSI (5.5 bar) |
| Water Inlet | 3/4" thread |
| Body Material | Zinc alloy |
| Handle | TPR wrapped |
| Nozzle Material | Brass |
| Built-in Rubber Washer | Yes |
| Spray Adjustment | Continuously adjustable |
| Intended Use | Outdoor watering |
Important Use Limits
The MZ255-2 is intended for:
Outdoor use only
Observe the following limits:
- Maximum water temperature: 115°F (46°C)
- Minimum operating temperature: 40°F (4°C)
- Maximum working pressure: 80 PSI (5.5 bar)
Keep the spray away from power sources, outlets, adapters, and other electrical equipment.
