This article provides an overview of the RAINPOINT D8005 Hose Nozzle, including its 7 spray patterns, flow adjustment, construction, connection size, and operating pressure.
If the model number on your product is D8005, you are viewing the correct support page.
What is the RAINPOINT D8005?

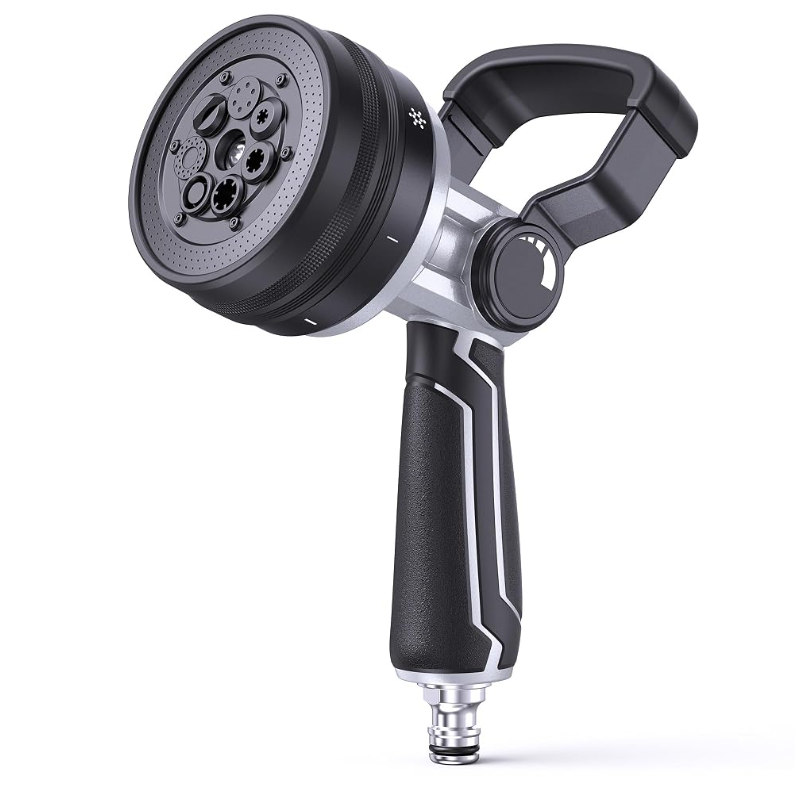

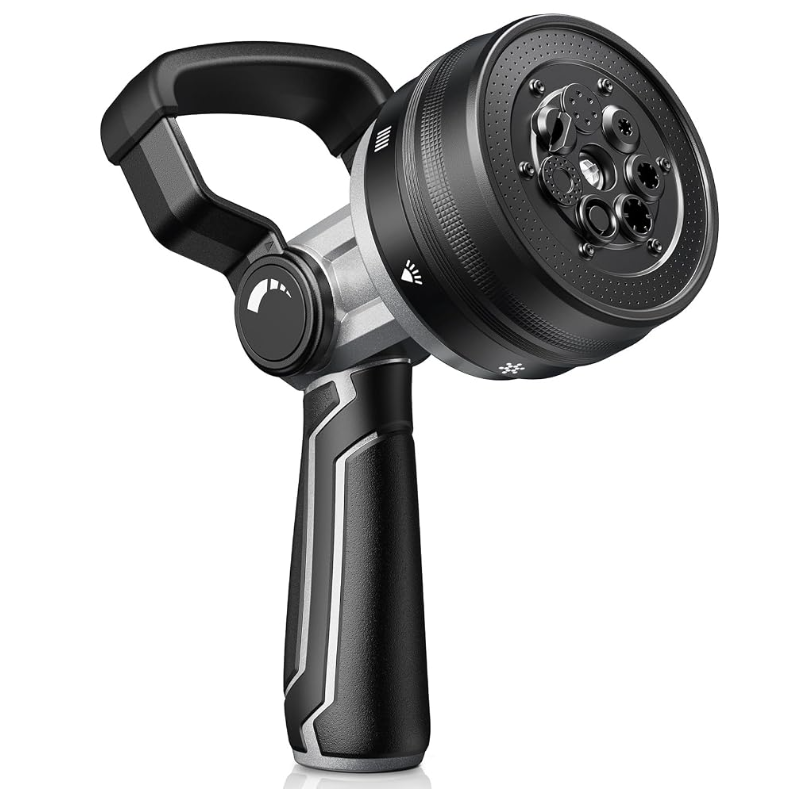

The RAINPOINT D8005 Hose Nozzle is a heavy-duty 7-pattern garden spray nozzle designed for general outdoor clean-water use.
The rotating spray head provides seven different spray patterns, while the flow-control adjustment allows the water output to be adjusted from: OFF → Maximum
The nozzle connects to a compatible garden hose through a 3/4" threaded water inlet.
Key Features
- 7 selectable spray patterns
- Adjustable water flow from OFF to Maximum
- Heavy-duty zinc alloy body
- TPR-covered grip
- ABS spray nozzle
- Built-in rubber washer
- 3/4" threaded water inlet
- Maximum working pressure of 116 PSI
- Designed for general outdoor clean-water use

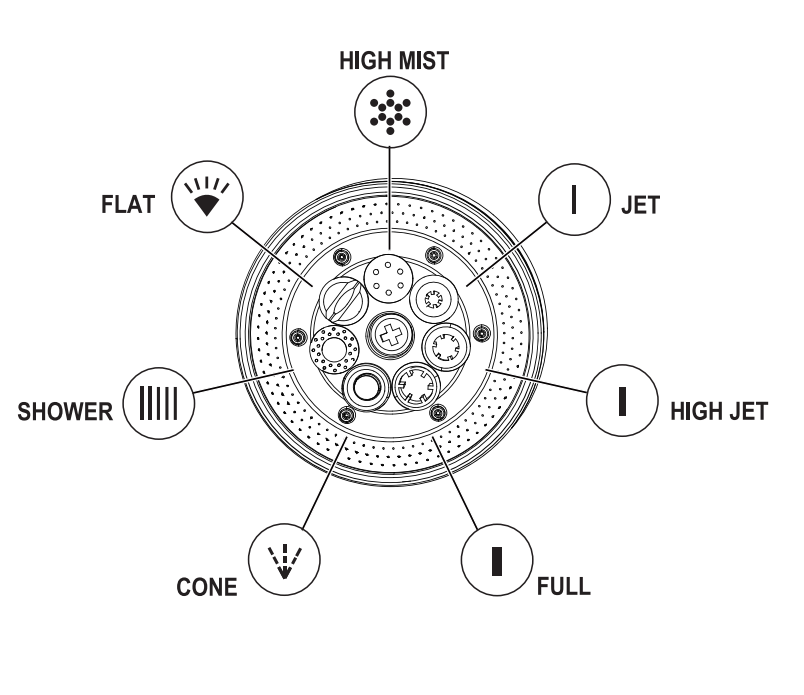

7 Spray Patterns
The D8005 provides the following spray modes:
- HIGH MIST
- JET
- HIGH JET
- FULL
- CONE
- SHOWER
- FLAT
Rotate the spray head to select the desired pattern.
Make sure the spray head is fully rotated into the selected position before use.
Product Specifications
| Parameter | Value |
|---|---|
| Model | D8005 |
| Product Type | 7-Pattern Heavy-Duty Hose Nozzle |
| Spray Patterns | 7 |
| Maximum Working Pressure | 116 PSI |
| Water Inlet | 3/4" thread |
| Body Material | Zinc alloy |
| Body Coverage | TPR |
| Nozzle Material | ABS |
| Built-in Rubber Washer | Yes |
| Flow Adjustment | OFF to Maximum |
| Intended Use | General outdoor clean-water spraying |
Important Use Limitations
The D8005 is intended for clean water only.
Do not use it for:
- Commercial applications
- Hot-water applications
- High-pressure applications above 116 PSI
- Pesticides
- Car-wash foaming agents
- Other chemicals
The manual warns that chemical products may cause corrosion or damage to the nozzle.
