RAINPOINT 1020 – Overview & Specifications

This article provides an overview of the RAINPOINT 1020 Hose Nozzle, including its 10 spray patterns, construction, connection size, and operating pressure.

If the model number on your product is 1020, you are viewing the correct support page.

What is the RAINPOINT 1020?

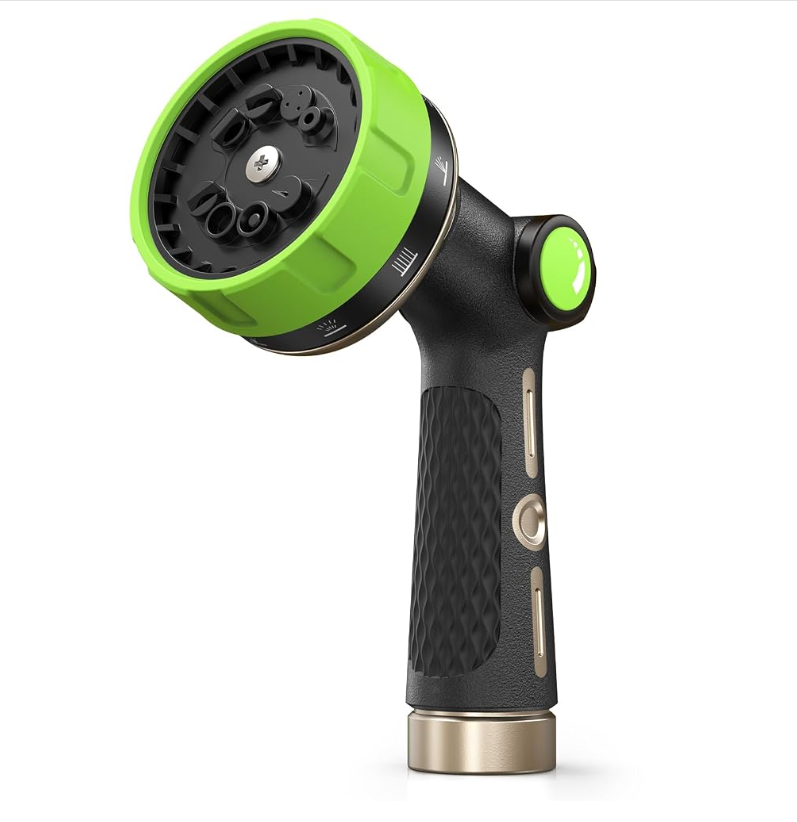

The RAINPOINT 1020 Hose Nozzle is a multi-pattern garden spray nozzle designed for general outdoor watering.

It provides 10 selectable spray patterns for different watering needs and includes an adjustable flow control that can be turned from OFF to Maximum.

The nozzle connects to a compatible garden hose through a standard 3/4" threaded inlet.

Key Features

• 10 selectable spray patterns
• Adjustable water flow from OFF to Maximum
• Zinc alloy body
• TPR-covered grip/body
• ABS spray nozzle
• Built-in rubber washer
• 3/4" threaded water inlet
• Maximum working pressure of 116 PSI
• Designed for clean-water outdoor use

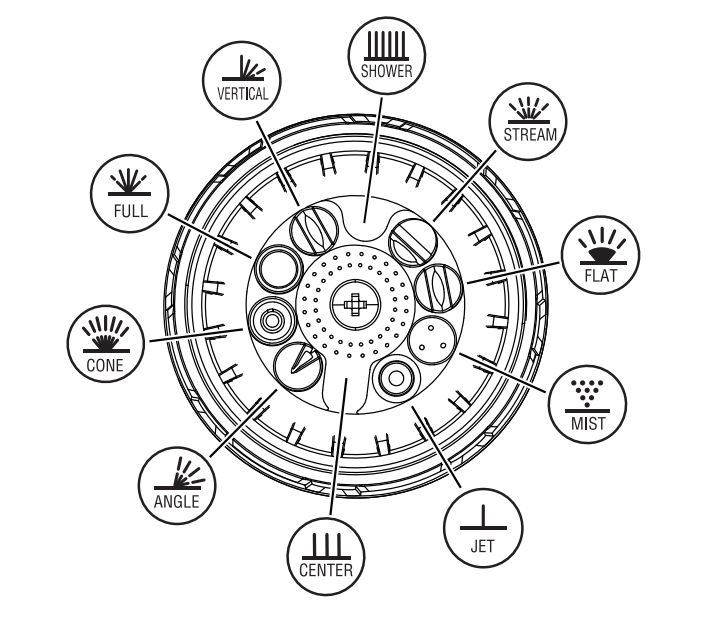

10 Spray Patterns

The 1020 provides the following spray modes:

1. FULL
2. VERTICAL
3. SHOWER
4. STREAM
5. FLAT
6. MIST
7. JET
8. CENTER
9. ANGLE
10. CONE

Rotate the spray head to select the desired pattern.

Make sure the spray head reaches the selected position and locks into place.

Product Specifications

Typical Applications

Different spray patterns can be selected according to the watering task.

The 1020 is designed for general outdoor use with clean water.

The current manual does not assign a specific application to each of the 10 spray patterns, so the Zendesk article should not claim that a particular mode is specifically intended for flowers, lawns, washing vehicles, or other uses unless another approved product document confirms it.
