This article provides an overview of the RAINPOINT DG-DIS201 Drip Irrigation Quick Connect System, including its tubing sizes, main components, and recommended operating conditions.
If the model number on your product is DG-DIS201, you are viewing the correct support page.
What is the DG-DIS201?
The RAINPOINT DG-DIS201 is a customizable drip irrigation system designed to distribute water from one main water source to multiple plants.
The system uses a quick-connect design, allowing tubing, connectors, end plugs, and emitters to be installed or removed without glue or lubricants.
The irrigation layout can be divided into multiple branches using one-way, two-way, four-way, and tee connectors.
For more efficient water distribution, the manual recommends using the system with a hose splitter where appropriate.
Key Features
- Quick-connect irrigation system
- Customizable branching layout
- 5/16" main line
- 1/4" distribution line
- Stream Emitters
- Vortex Emitters
- Push-to-connect fittings
- Easy tubing removal through release rings
- Built-in filter in the water-source connector
- Multiple connector configurations
- Suitable for multi-plant irrigation
- Recommended working pressure of 30–60 PSI

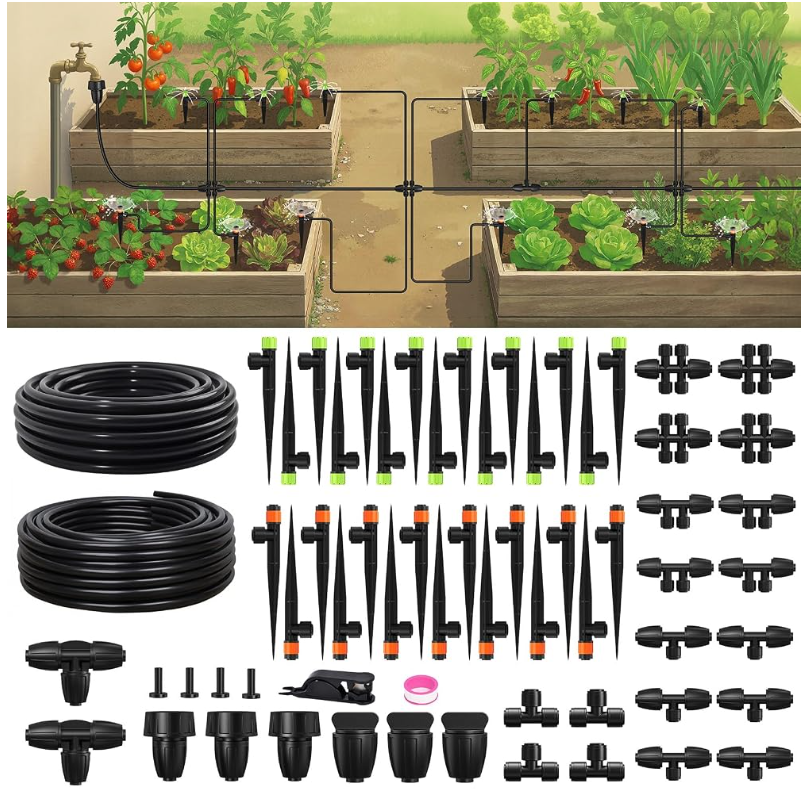

Main Components
| Component | Function |
|---|---|
| Main Line | Carries water from the main water source |
| Distribution Line | Delivers water from the main line to individual emitters |
| 3/4" to 5/16" Female Connector | Connects the irrigation system to the water source |
| Barbed Tee 5/16" | Splits the main water line |
| 5/16" End Plug | Closes an unused 5/16" line |
| 1/4" End Plug | Closes an unused 1/4" outlet |
| Four-Way Connector | Divides water into multiple distribution branches |
| Two-Way Connector | Provides two distribution outlets |
| One-Way Connector | Provides one distribution outlet |
| Tee | Splits the main line |
| Stream Emitter | Provides a stream-style watering output |
| Vortex Emitter | Provides a vortex-style watering output |
Product Specifications
| Parameter | Value |
|---|---|
| Model | DG-DIS201 |
| Product Type | Drip Irrigation Quick Connect System |
| Main Line | 5/16" |
| Distribution Line | 1/4" |
| Water Source Connector | 3/4" to 5/16" |
| Recommended Water Pressure | 30–60 PSI |
| Emitter Types | Stream Emitter / Vortex Emitter |
| Maximum Emitters Referenced in Manual | 16 |
| Recommended Max per Four-Way Connector | 8 emitters total, 2 per branch |
Recommended System Layout
A typical setup is:
Water Source → Optional Hose Splitter → 3/4" to 5/16" Connector → Main Line → Branch Connector → 1/4" Distribution Line → Emitter → Plant
For installations using all 16 emitters, the manual recommends distributing the load rather than placing too many emitters on one branch.
