RAINPOINT DC102 – Overview & Specifications

This article provides an overview of the RAINPOINT DC102 Adjustable Metal Hose Nozzle, including its flow control, adjustable spray pattern, construction, connection size, and operating pressure.

If the model number on your product is DC102, you are viewing the correct support page.

What is the RAINPOINT DC102?

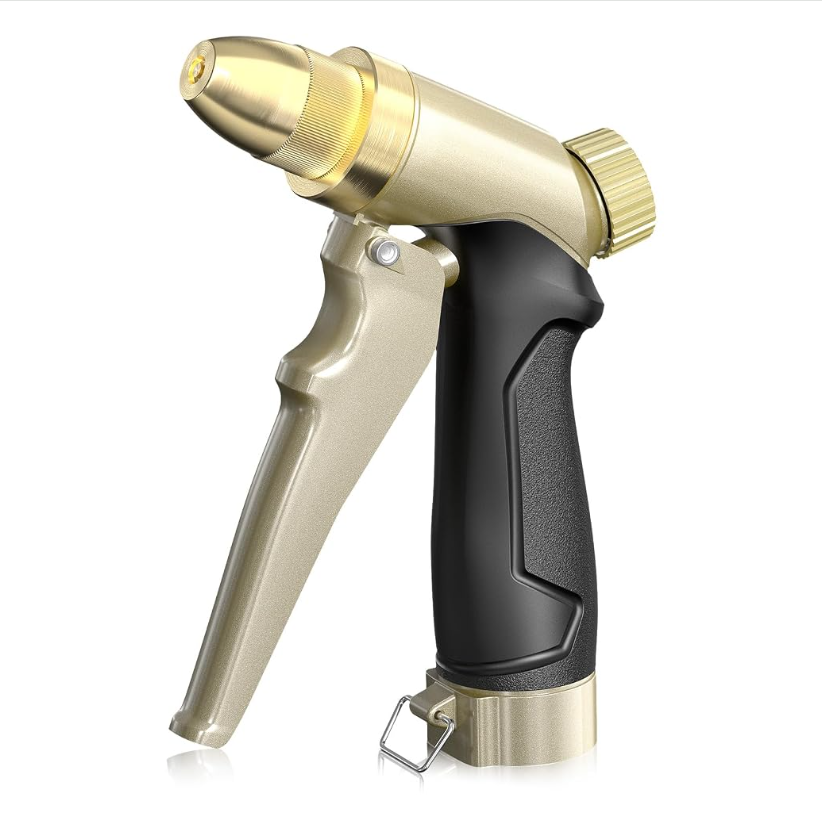

The RAINPOINT DC102 is an adjustable metal garden hose nozzle designed for general outdoor watering.

Unlike a multi-pattern nozzle with fixed spray settings, the DC102 uses a rotating brass nozzle to adjust the spray pattern.

It also includes a separate Flow Control Dial that allows the water output to be increased or decreased without changing the spray-head position.

Key Features

• Adjustable spray pattern
• Separate water-flow adjustment
• 100% zinc alloy body
• Brass nozzle
• TPR-wrapped handle
• Trigger operation
• Trigger-lock buckle for continuous spraying
• Built-in rubber washer
• 3/4" threaded water inlet
• Standard working pressure: 60 PSI
• Maximum working pressure: 80 PSI

Main Components

Brass Nozzle

Rotate the brass nozzle to change the spray pattern.

The manual describes adjustment between a fine mist, jet, and shower-style spray.

Flow Control Dial

Adjusts the amount of water independently from the spray pattern.

• Turn clockwise to decrease water flow.
• Turn counterclockwise to increase water flow.

Trigger

Press the trigger to start spraying.

Buckle

The buckle can secure the trigger for continuous watering without keeping the trigger pressed by hand.

Built-in Rubber Washer

Helps seal the connection between the garden hose and nozzle.

Product Specifications
