This article provides an overview of the RAINPOINT SH101 Sprinkler Soaker Hose, including its main features, specifications, and recommended applications.
If the model number on your product is SH101, you are viewing the correct support page.
What is the SH101?

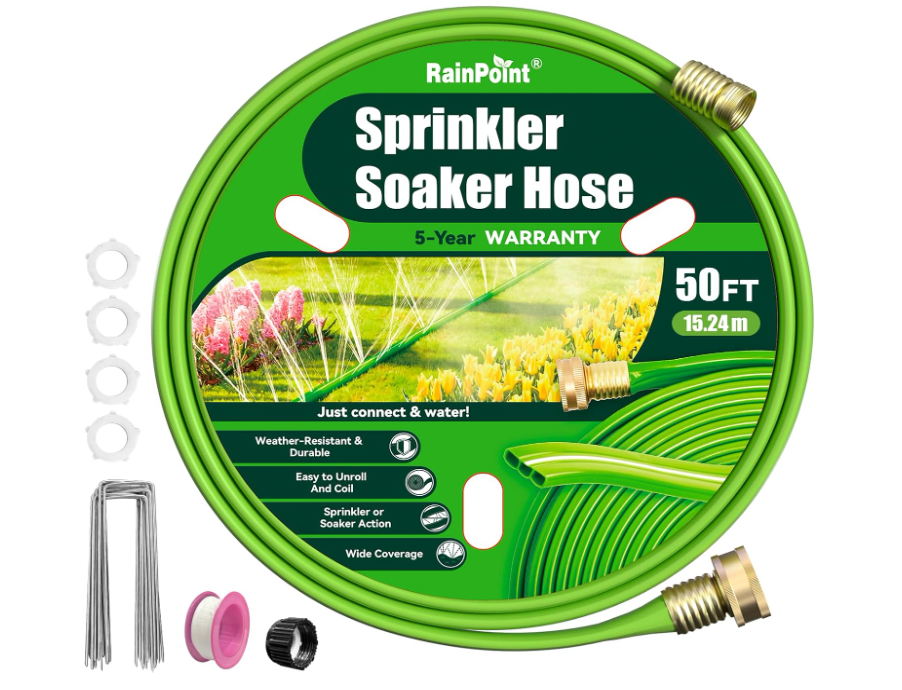

The RAINPOINT SH101 is a 2-in-1 sprinkler and soaker hose designed to provide flexible watering for gardens, flower beds, and narrow lawn areas.
The hose contains evenly spaced watering holes along its length.
Depending on the water pressure and hose orientation, it can provide two different watering effects:
- Sprinkler Mode: Creates a fine overhead spray for broader watering.
- Soaker Mode: Delivers water closer to the soil and plant roots.
When the incoming water pressure is higher, the hose operates primarily as a sprinkler hose. At lower pressure, it can provide a gentler soaker-style watering effect.
Key Features
- 2-in-1 sprinkler and soaker watering
- Evenly spaced watering holes
- Suitable for gardens and flower beds
- Suitable for narrow lawn areas
- Flexible PVC hose construction
- Brass connection components
- Removable end cap
- Extendable by connecting another compatible SH101 hose
- U-shaped garden stakes included for securing the hose
- Adjustable watering effect through pressure and hose orientation
Product Specifications
| Parameter | Value |
|---|---|
| Model | SH101 |
| Product Type | Sprinkler Soaker Hose |
| Water Inlet | 3/4" NH |
| Working Pressure | 40-60 PSI |
| Maximum Recommended Pressure | 60 PSI |
| Material | PVC + Brass + Plastic |
| Hose Spacing | 3.9-5.9 in (10-15 cm) |
| Maximum Recommended Connected Length | 75 ft |
| Main Watering Modes | Sprinkler / Soaker |
Watering Modes
Sprinkler Mode
For overhead spraying:
- Position the white stripes facing upward.
- Use sufficient water pressure to create the desired spray pattern.
This mode is suitable for broader watering of garden beds, flowers, and narrow lawn areas.
Soaker Mode
For gentler watering closer to the soil:
- Position the white stripes facing downward.
- Use lower water pressure.
This allows water to be delivered closer to the plant-root area.
Suitable Applications
The SH101 is suitable for:
- Garden beds
- Flower beds
- Narrow lawn areas
- Planting rows
- Other areas requiring flexible sprinkler or soaker watering
