RAINPOINT RT1001 – Installation, Use & Common Issues

This article explains how to install and use the RAINPOINT RT1001 90° Hose Swivel Elbow and how to address common connection leakage.

Installation

Step 1: Check the Faucet Connection

Before installation:

• Check that the faucet uses a compatible 3/4" NH thread.
• Check that the faucet threads are clean and undamaged.
• Make sure the sealing washer is correctly positioned.

Step 2: Connect the RT1001

Align the RT1001 inlet with the faucet thread.

Screw the adapter onto the faucet until secure.

· Important

Hand-tighten only.

The manual states that the included soft sealing gasket is designed to provide sealing without excessive tightening.

Do not overtighten the adapter using tools, as this may damage the connection.

Step 3: Connect the Garden Hose

Connect a compatible standard 3/4" garden hose to the RT1001 outlet.

Hand-tighten the connection securely.

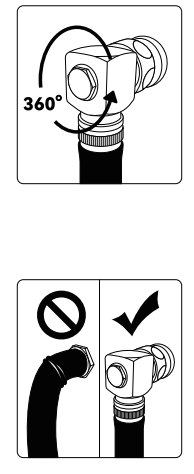

Using the 360° Swivel

After installation, the swivel section can rotate through 360°.

Adjust the hose direction as needed to:

• Improve hose routing
• Reduce twisting
• Reduce kinking
• Keep the hose from bending sharply at the faucet
• Provide additional clearance near a wall or faucet

Avoid forcing the swivel beyond its normal movement.

Condition 1: Water leaks between the faucet and RT1001

Possible Causes

• The faucet and adapter threads are not correctly aligned.
• The connection is not sufficiently tightened.
• The sealing washer is missing or incorrectly positioned.

What to Do

1. Turn off the water supply.
2. Disconnect the RT1001.
3. Check the faucet and connector threads.
4. Make sure the threads are correctly aligned.
5. Check that the rubber sealing washer is installed.
6. Reconnect the adapter.
7. Hand-tighten securely.

Condition 2: Leakage continues after reconnecting

If the threads are correctly aligned and leakage remains:

1. Turn off the water.
2. Disconnect the RT1001.
3. Wrap PTFE / Teflon tape around the faucet thread.
4. Make sure a rubber washer is installed inside the RT1001 inlet.
5. Reconnect the adapter.
6. Hand-tighten and test again.

This is the leakage solution specifically provided in the manual.

Condition 3: The hose twists or bends sharply at the faucet

Rotate the RT1001 swivel until the hose is positioned more naturally.

The 360° swivel is designed to help reduce:

• Hose twisting
• Kinking
• Connection stress

Frequently Asked Questions

Does the RT1001 rotate?

Yes.

The connector provides: 360° swivel movement

What size faucet does the RT1001 fit?

The manual specifies: 3/4" NH water inlet for US-style faucets

What size garden hose can I connect?

The outlet is designed for: Standard 3/4" garden hoses

Can the RT1001 be used with a hose reel?

Yes.

Hose-reel use is one of the applications specifically shown in the manual.

Can the RT1001 be used with an RV?

Yes.

The manual lists compatible RV water systems and RV outlets as a supported use case.

Can I use the RT1001 to extend a short faucet?

Yes.

The angled adapter can extend the faucet outlet and provide more clearance for the hose connection.

Can it help prevent hose kinking?

Yes.

The 360° swivel design helps the hose move more freely and can reduce twisting and kinking at the connection point.

Should I use a wrench to install the RT1001?

No.

The manual recommends hand-tightening only.

Overtightening with tools may damage the adapter or connection.

What should I do if the connection leaks?

First:

• Check thread alignment.
• Check the rubber washer.
• Hand-tighten the connection.

If leakage remains, use PTFE / Teflon tape on the faucet thread and reconnect the adapter.

Can I disassemble the RT1001?

No.

The manual advises against disassembling the components because this may cause malfunction.

Safety & Care

Hand-Tighten Only

Do not overtighten the product with tools.

Wear Gloves During Installation if Needed

The manual notes that the product is made of metal and some edges may cause minor scratches.

Do Not Disassemble

Do not take apart the swivel assembly or internal components.

Check the Sealing Washer

Keep the soft sealing gasket correctly installed to help maintain a watertight connection.

After-Sales Support

For support, prepare:

• Model number: RT1001
• Order number
• Description of the issue
• Photo of the faucet and adapter connection if leakage is involved

The current manual already uses:

US Hotline: +1 833 381 5659
DE Hotline: +49 800 182 0576
UK Hotline: +44 20 4628 3036
Email: service@rainpoint.com
