This article provides an overview of the RAINPOINT DZ1S Garden Hose Shut Off Valve, including its connection sizes, operating pressure, materials, and intended applications.
If the model number on your product is DZ1S, you are viewing the correct support page.

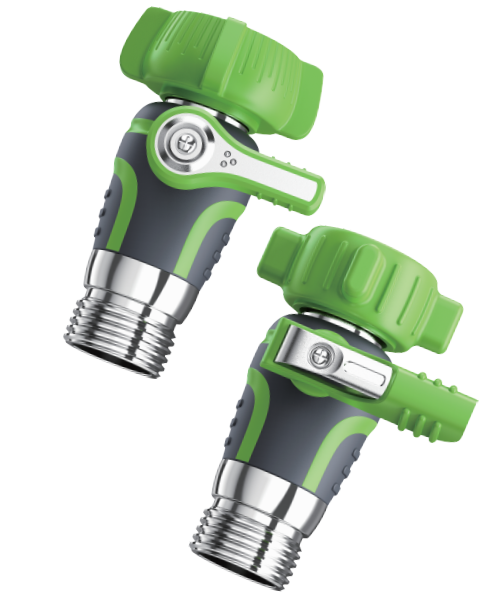

What is the RAINPOINT DZ1S?
The RAINPOINT DZ1S Garden Hose Shut Off Valve is designed to connect a single water source to a standard garden hose while providing convenient control over the water flow.
The integrated valve design allows the water to be:
- Turned on
- Turned off
- Adjusted to the desired flow
The DZ1S can also be used as an outdoor faucet extender, helping make the water connection easier to access in suitable installations.
It is designed for applications such as:
- Garden watering
- Outdoor cleaning
- Other general outdoor water-use applications
Key Features
- Single-outlet shut-off valve
- Adjustable water flow
- ON/OFF water control
- Integrated design to help reduce leakage risk
- Can be used as an outdoor faucet extender
- US and EU faucet configurations
- Compatible with standard 3/4" garden hoses
- Zinc-alloy body and outlet
- Brass inlet structure
- TPR anti-slip cover
Product Overview
The main parts of the DZ1S include:
- Inlet
- Valve Switch
- Outlet
- ABS inlet cover
- Brass inlet structure
- Zinc-alloy body/outlet
- TPR anti-slip cover
Approximate product dimensions shown in the manual:
- Width: 2 in
- Height: 3.4 in
Product Specifications
| Parameter | Value |
|---|---|
| Model | DZ1S |
| Product Type | Garden Hose Shut Off Valve |
| US Water Inlet | NH thread for 3/4" faucets |
| EU Water Inlet | BSP thread for 3/4" faucets |
| Water Outlet | For standard 3/4" garden hoses |
| Working Water Pressure | 0–20 bar (0–300 PSI) |
| Working Temperature | 41°F–140°F (5°C–60°C) |
| Inlet Cover Material | ABS |
| Inlet Structure | Brass |
| Body / Outlet Material | Zinc alloy |
| Outer Cover | TPR anti-slip cover |
| Water Control | ON / OFF / Adjustable flow |
Connection Compatibility
US Configuration
Designed for: 3/4" NH faucets
EU Configuration
Designed for: 3/4" BSP faucets
Water Outlet
Designed for: Standard 3/4" garden hoses
Make sure the faucet thread matches the regional configuration before installation.
Warranty
The DZ1S manual states that RAINPOINT provides a 5-year limited warranty to the original purchaser/user against defects in materials or workmanship, subject to the warranty conditions described in the manual.
