This article explains how to connect and operate the RAINPOINT 1020W 8-Pattern Hose Nozzle.
Installation Instructions
Step 1: Check the Hose Connection
Before installation:
- Make sure the garden hose connection is clean.
- Check that the built-in rubber washer is correctly positioned.
- Confirm that the hose uses a compatible 3/4" connection.

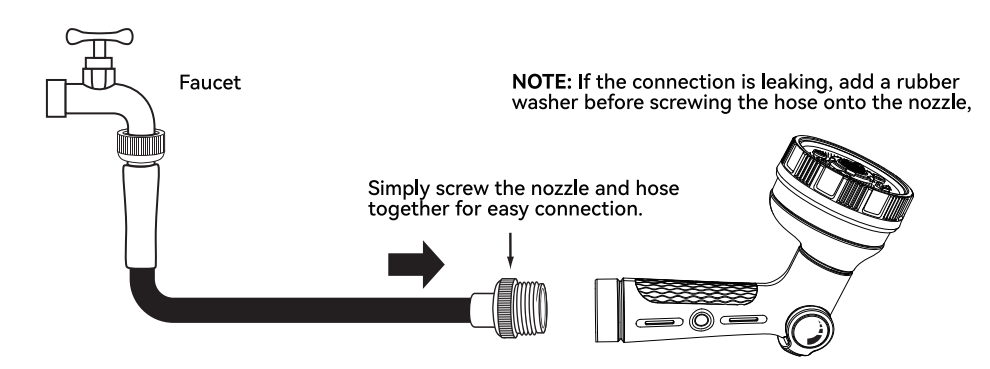

Step 2: Connect the Nozzle
Simply screw the garden hose onto the nozzle connection.
Tighten the connection securely by hand.
Step 3: Check for Leakage
Turn on the water and inspect the hose-to-nozzle connection.
If the connection leaks:
- Turn off the water.
- Disconnect the hose.
- Add an additional rubber washer.
- Reconnect and tighten the hose.
- Turn the water back on and check again.
The manual states that two rubber washers may be used together if additional sealing is required.

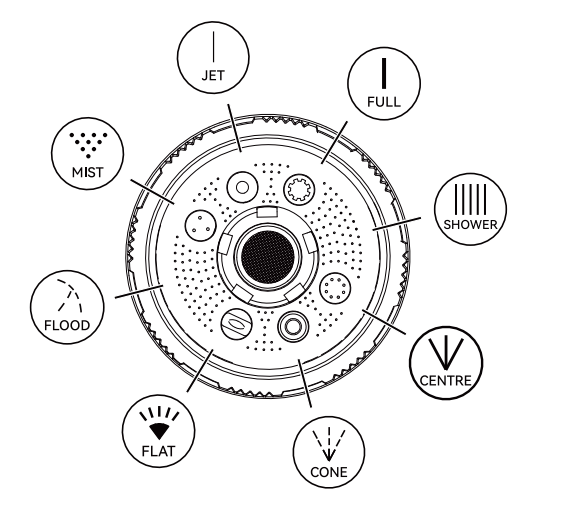

Step 4: Select a Spray Pattern
Rotate the spray head to choose one of the eight available modes:
- JET
- FULL
- SHOWER
- CENTRE
- CONE
- FLAT
- FLOOD
- MIST
Rotate the spray head completely into the selected position.
Step 5: Adjust the Water Flow
Use the flow-control adjustment to regulate water output.
The adjustment range is: OFF → Maximum
Turn toward OFF to reduce or stop the flow.
Turn toward Maximum to increase the flow.
Before Regular Use
Check that:
- The hose is firmly connected.
- The rubber washer is installed.
- There is no leakage.
- The spray head is fully rotated into the selected position.
- The nozzle is not visibly damaged.
- Water pressure does not exceed 116 PSI.
