This article provides an overview of the RAINPOINT SK1201 Soaker Hose, including its main components, specifications, and recommended applications.
If the model number on your product is SK1201, you are viewing the correct support page.
What is the SK1201?

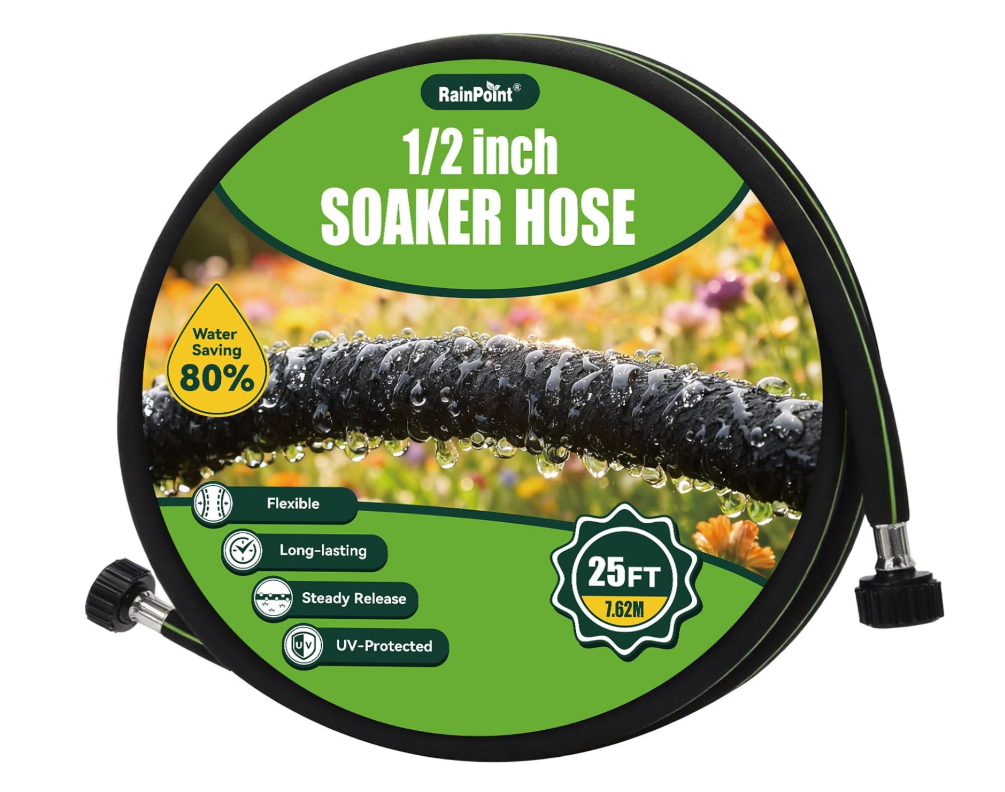

The RAINPOINT SK1201 Soaker Hose is a water-saving irrigation hose designed to deliver water directly into the soil around plant roots.
It is suitable for watering:
- Garden beds
- Potted plants
- Shrubs
- Crops
- Other planting areas requiring slow, targeted irrigation
The hose uses a porous rubber-and-plastic construction that allows water to seep gradually along its length.
Repairable connectors are provided to help extend the service life of the hose if a section becomes damaged.
Key Features
- Slow, direct soil irrigation
- Water-saving soaker design
- Flexible curved layout around planting areas
- Can be used on the soil surface or under a thin soil covering
- Repairable hose connections
- Adjustable water flow using flow-restrictor gaskets
- Suitable for connecting additional soaker-hose sections
- 3/4" faucet connection
- 40–60 psi recommended operating pressure
Main Components
Plastic End Cap
Used to close the end of the soaker hose.
Make sure it is securely tightened before use to help prevent leakage.
3/4" Flat Rubber Washer
Used to improve sealing at compatible connections.
It is also used when connecting one soaker hose directly to another.
Pressure-Relief / Flow-Restrictor Gasket
Installed at the water-source connection to help control incoming water pressure.
The manual also provides guidance for using different flow-restrictor gaskets when water pressure needs adjustment.
Product Specifications
| Parameter | Value |
|---|---|
| Model | SK1201 |
| Product Type | Soaker Hose |
| Hose Inner Diameter | 1/2" |
| Water Inlet | 3/4" faucet |
| Recommended Working Pressure | 40–60 psi |
| Hose Material | Rubber & plastic tubing |
| Connector Material | Plastic fittings + stainless steel |
| Maximum Effective Soaker-Hose Length | 100 ft |
| Maximum Soil-Cover Depth | Up to 7.8 in |
Suitable Watering Setups
A typical setup is: Faucet → SK1201 Soaker Hose → End Cap
The SK1201 can also be connected to another compatible soaker hose.
When connecting two soaker hoses directly, use a 3/4" flat rubber washer at the joint instead of the pressure-relief gasket.
